PRODUCT DETAILS
-
1045Lead time
Cost
—
Vista1045. LED FLOODLIGHT.
SPECIFICATIONS- DimensionsW: 4 1/2"L: 4 1/2"H: 10 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80
- Watt(Approx)14 W21 W26 W
- Lumens(Approx)1141 Lm1409 Lm1302 Lm1883 Lm2325 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- Other
- DimmingDim to 3-10%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CUL
- EnvironmentIP66
- Mounting TypeKnuckle
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details

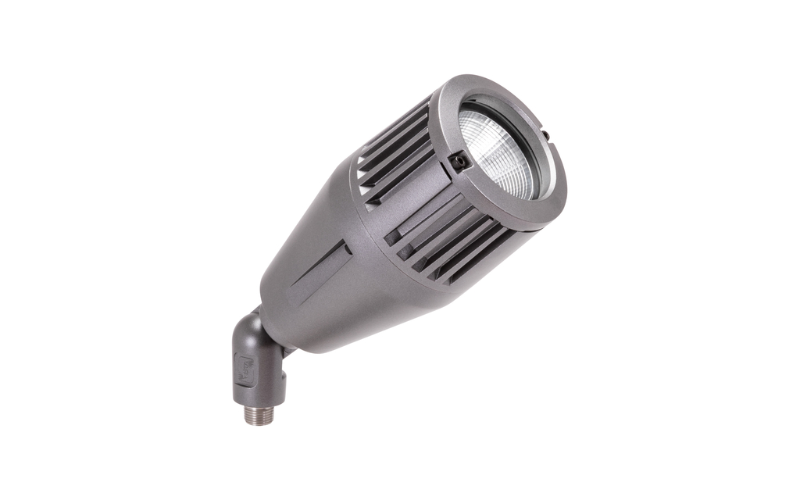

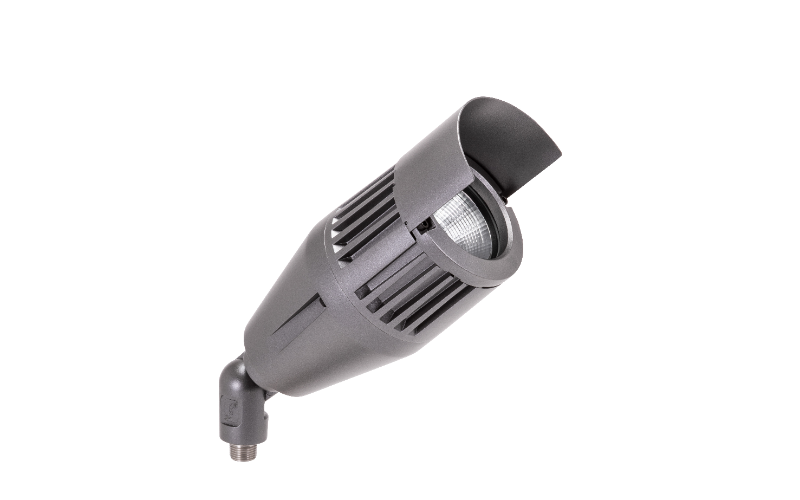

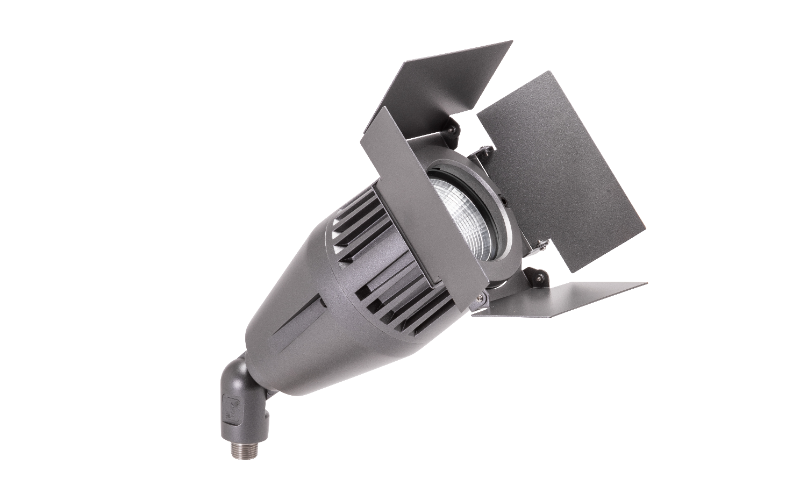

CONFIGURE PRODUCTPRODUCT DESCRIPTION—The 1045 is a universal 120V-277V input integrated Chip-On-Board (COB) LED Floodlight fixture. It's equipped with high-performance reflector optics, integral drivers, and is crafted from die-cast aluminum. The 1045 offers high lumen outputs between 1100 - 2400 lumens. It supports both 0-10V and Phase Cut dimming options. Its door is specifically designed to shed water from the lens surface. A durable polyester powder coat finish is applied to the 1045, available in 18 standard colors. The fixture's fully adjustable Infinity Knuckle is constructed from copper-free aluminum with a stainless steel stem, ensuring the fixture remains isolated from harmful corrosive soil.MORE DESCRIPTION
