PRODUCT DETAILS
-
EPSJL-G-40W-UNVLead time
Cost
—

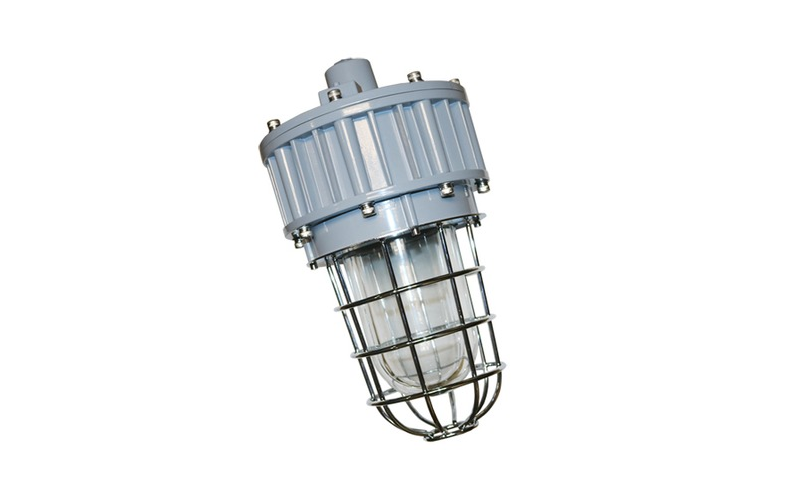

TRUEX LIGHTINGEPSJL-G-40W-UNV. LED Explosion Proof Small Area Jar Light 40 Watts / 4,000 lumens.
SPECIFICATIONS- DimensionsW: 6.8"L: 6.8"H: 16.1"
- Light SourceLED
- CCT/Color5000K
- CRI70
- Watt(Approx)40 W
- Lumens(Approx)4000 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- Other
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentDampIP66MarineFood Processing
- Mounting TypePendantCeiling SurfaceWall Arm/CantileverBrackets
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The EPGJL-40W-UNV, 40-watt Jelly Jar light is rated as follows for use in environments that require the following certifications:
Class I, Division 1, Groups: C, D
Class I, Division 2, Groups: A, B, C, D
Class II, Division 1, Groups: E, F, G
Class II, Division 2, Groups: E, F, G
Class III
The fixture is designed for applications requiring metallic fixtures. Excellent for marine wet and damp locations. Typical applications include solvent and cleaning areas, petrochemical facilities, marine facilities, waste treatment plants, and food processing applications. The housing is aluminum with a clear diffuser/lens. The fixture is available for surface mounting or pendant installation.MORE DESCRIPTION
