PRODUCT DETAILS
-
LASLead time
Cost
—

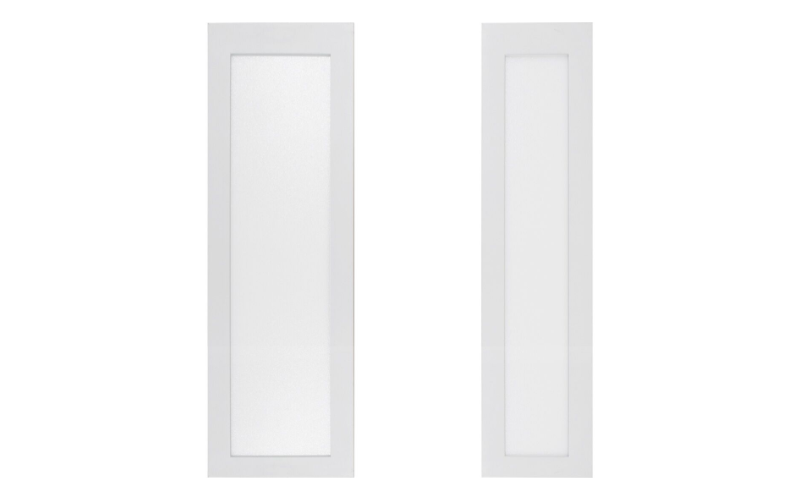

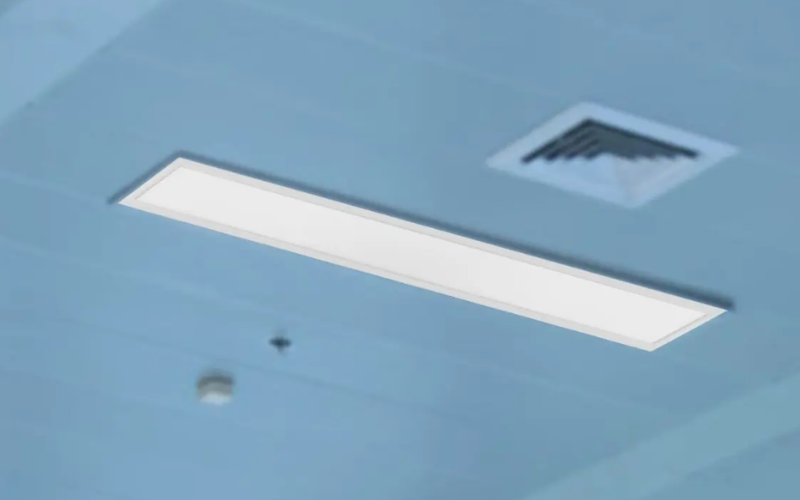

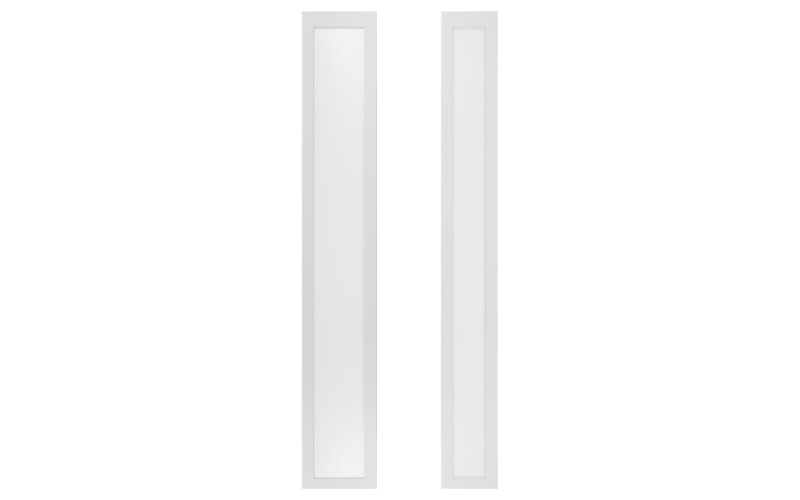

Spitzer LightingLAS. Architectural Surface Linear LED Luminaire.
SPECIFICATIONS- DimensionsW: 4.25"5.75"L: 23.7"47.76"H: 1"
- Light SourceLED
- CCT/Color3000K3500K4000KField Select CCT
- CRI80
- Watt(Approx)20 W30 W40 W
- Lumens(Approx)1700 Lm1800 Lm1680 Lm2520 Lm2680 Lm3400 Lm3600 Lmswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- Other
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The LAS series is an elegant surface linear fixture family designed to please architects, contractors and designers. Available in two lengths and apertures, it can create pleasing illumination. On select fixtures a slide switch comes standard with three selectable wattage levels and three selectable color temperatures, providing the flexibility to adapt to the changing needs of the space, setting, or environment.MORE DESCRIPTION
