PRODUCT DETAILS
-
SHSE-SLead time
Cost
—

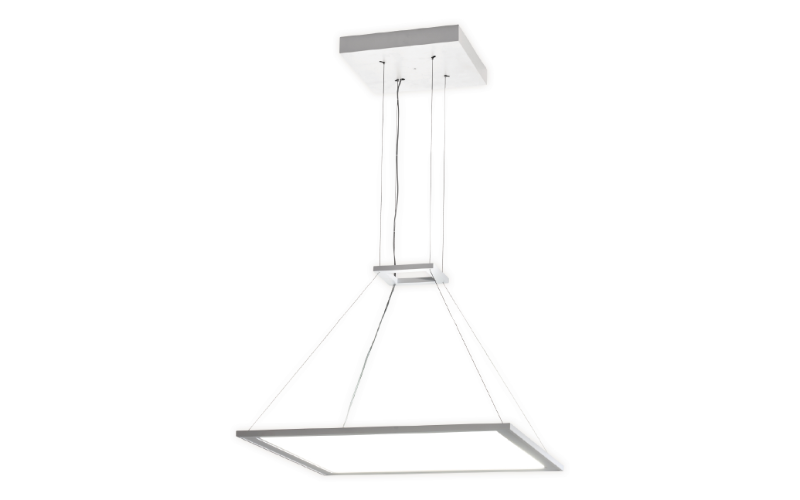

Shaper (Cooper Lighting Solutions)ShSe. Shaper Sense Square Pendant Luminaire Suspended Direct/Indirect.
SPECIFICATIONS- DimensionsW: 25.05"L: 25.05"H: 0.56"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI90 80
- Watt(Approx)30 W38.8 W
- Lumens(Approx)2579 Lm3206 Lm3148 Lm3298 Lm4104 Lm4027 Lm
- OpticsDirect/IndirectGeneral Diffused
- Adjustable
- Other
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULRoHSBAA
- EnvironmentHealthcare General
- Mounting TypePendant
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—Shaper Sense is part of the award-winning, industry leading integrated acoustic and lighting product line with wireless controls. Circle, is the light engine only and is an independant sleek luminaire. The light fixture itself is only 0.5" in height and 25" in diameter, but provides lumen levels from 3200 to almost 9000 lumens. Lighting is created using an LED edge-lit panel that produces uniform visual distributions. The patented Shaper Sense product series is a new system architecture that allows natural light to pass through, creating a unique window effect.MORE DESCRIPTION
