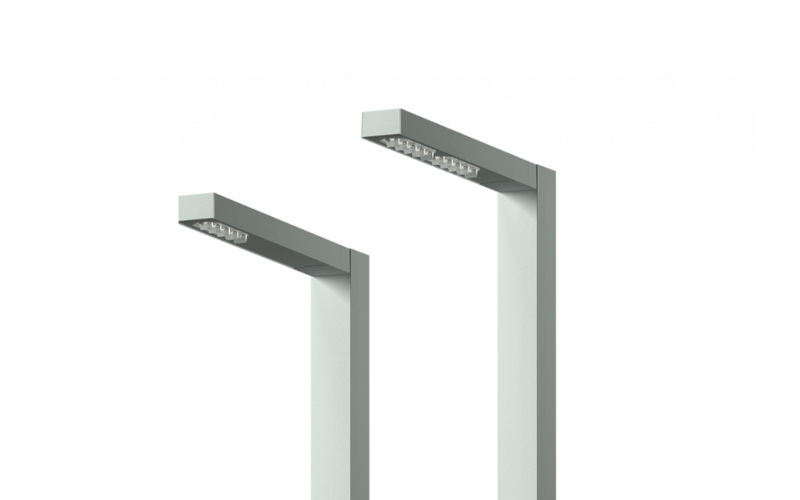

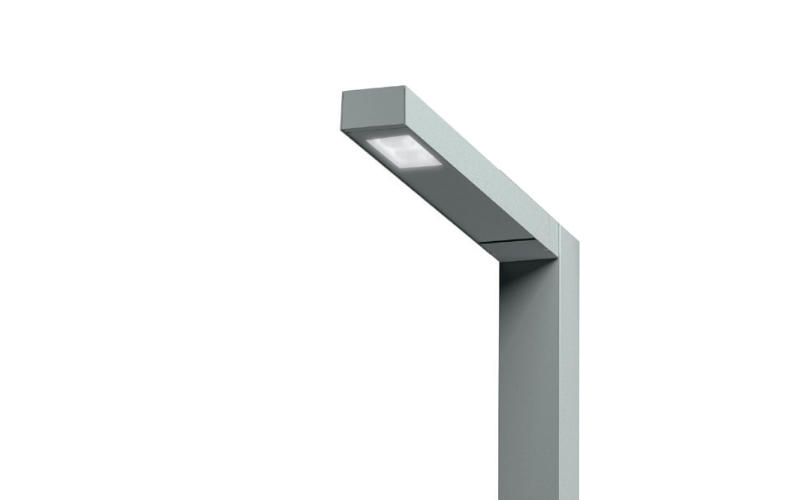

SeluxACL. Arca LED Gen5.
SPECIFICATIONS- DimensionsL: 29"H: 2 3/4"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI80
- Watt(Approx)24 W36 W48 W54 W72 W100 W
- Lumens(Approx)2520 Lm3540 Lm5346 Lm5040 Lm6558 Lm9900 Lm
- OpticsDirectType IType IIType IIIType IVType V
- Adjustable
- Other
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V220-240V277V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDark SkyRoHS
- EnvironmentIP65
- Mounting TypePole/Mast ArmWall Arm/Cantilever
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details

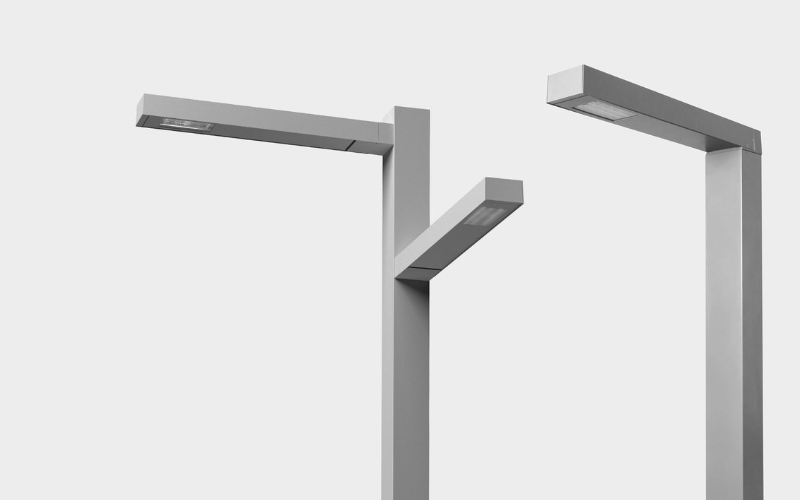

CONFIGURE PRODUCTPRODUCT DESCRIPTION—Arca and Arca Pro - both similar in form and aesÂthetic appeal, but vary in scale and power.MORE DESCRIPTION
