PRODUCT DETAILS
-
1335LEDLead time
Cost
—

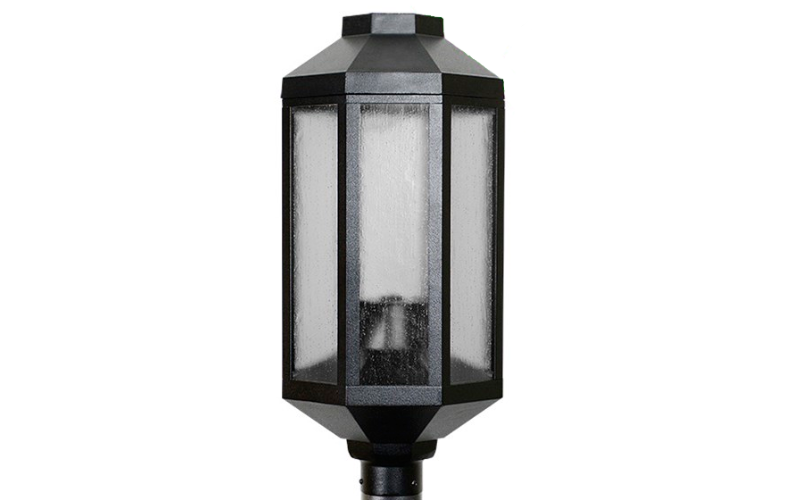

Sternberg Lighting1335LED. REVERE LED SERIES.
SPECIFICATIONS- DimensionsW: 15 1/2"L: 15 1/2"H: 30"
- Light SourceLED
- CCT/Color2700K3000K4000K5000K
- CRI70
- Watt(Approx)27 W49 W45 W63 W98 W81 W
- Lumens(Approx)2515 Lm4970 Lm4065 Lm6520 Lm9405 Lm8145 Lm
- OpticsDirectType IIType IIIType IVType V
- Adjustable
- Other
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- Environment
- Mounting TypePole/Mast ArmPole/Post TopWall Arm/CantileverBase
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The 1335 LED Revere series is a modern replica of a gothic styled octagonal fixture. It has a heavy wall hinged roof with internal heatsink. The luminaire has LED light sources with roof mounted, down lighting optics and is UL listed in the U.S. and Canada.MORE DESCRIPTION
