PRODUCT DETAILS
-
CGSBLead time
Cost
—

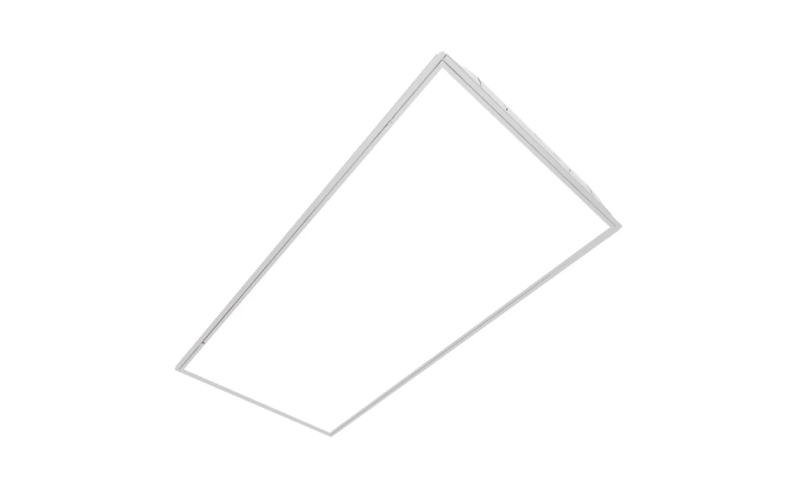

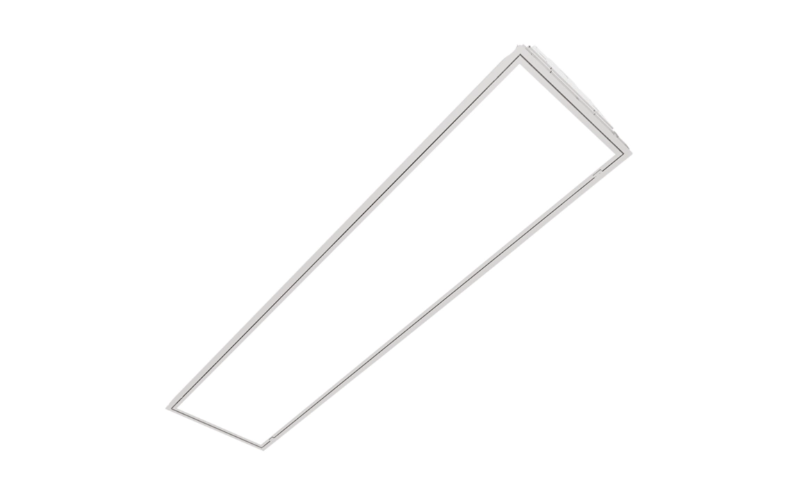

Metalux (Cooper Lighting Solutions)CGSB. Service from Below LED Panel Recessed, Surface, Suspended 1x4 / 2x2 / 2x4.
SPECIFICATIONS- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)16.9 W22.5 W28.6 W20.4 W24.9 W29.2 W24.38 W27.48 W32.7 W39 W33.8 W38.2 W32.13 W35.45 W39.89 W44.2 W49.5 W42.5 W46.2 W45.43 W58.2 W66.6 W68.3 W74.8 W53.6 W63 W72.6 W50.97 W54.29 W66.92 W74.9 W
- Lumens(Approx)2070 Lm2686 Lm2329 Lm2891 Lm3098 Lm3696 Lm4246 Lm4733 Lm3507 Lm4063 Lm4648 Lm3239 Lm3660 Lm4283 Lm4672 Lm5114 Lm5800 Lm6386 Lm6937 Lm5251 Lm5783 Lm6361 Lm6955 Lm5140 Lm5918 Lm6463 Lm6930 Lm8121 Lm9278 Lm8332 Lm9344 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- Other
- DimmingDim to 3-10%Dim to 1%Step Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkBluetoothWaveLinxIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULDLC*T24*BAA
- EnvironmentDamp
- Mounting TypeCeiling SurfaceCeiling Recessed
- HousingICChicago Plenum
- Housing Depth3 1/4 ''6 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The CGSB service from below panel is a perfect solution where the aesthetically pleasing look of a fully luminous panel is desired, but serviceability access from below the ceiling is required. The CGSB is fully configurable, allowing for flexibility in design for light levels, color temperatures, dimming options to 1%, connected control systems, emergency and much more. Additionally, CGSB leverages a housing design to fit into most plenum spaces making it a great solution for K-12 schools, general healthcare spaces like lobbies, corridors, and any other space that requires a simple wipe down lens with accessibility from below. The CGSB delivers the perfect combination of a smooth frosted panel with the feature of a room side access door to meet any service from below specification requirements.MORE DESCRIPTION
