PRODUCT DETAILS
-
ISSLead time
Cost
—

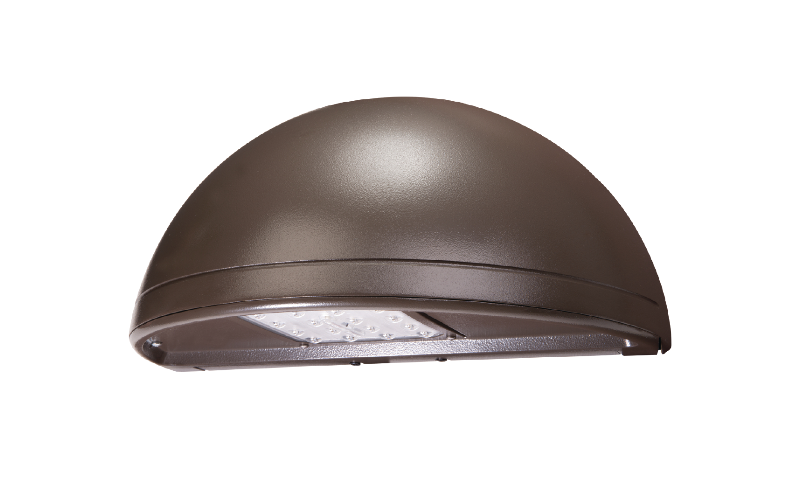

McGraw-Edison (Cooper Lighting Solutions)ISS. Impact Elite LED Small Quarter Sphere WALL MOUNT LUMINAIRE.
SPECIFICATIONS- DimensionsW: 9"L: 18"H: 7"
- Light SourceLED
- CCT/ColorAmber (WildLife)2400K or less2700K3000K3500K4000K5000K6000K
- CRI70 80
- Watt(Approx)20.1 W23.3 W25.4 W28.7 W28.9 W34.2 W36.6 W30.5 W36.4 W37.7 W45.2 W49.5 W48.9 W49 W58.2 W60.7 W66 W70.1 W63 W63.9 W82.4 W83.2 W94.4 W95 W
- Lumens(Approx)2883 Lm3601 Lm4751 Lm4296 Lm5945 Lm5369 Lm7440 Lm8123 Lm7010 Lm8733 Lm10721 Lm11750 Lm
- OpticsDirectType IType IIType IIIType IVType VArea 90°
- Adjustable
- Other
- DimmingDim to 3-10%
- Controls/NetworkBluetoothWaveLinxIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance100000 h
- CertificatesUL/CULDark SkyMade in USABAA
- EnvironmentIP66
- Mounting TypeWall Surface
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The IMPACT Elite Quarter Sphere cutoff wall luminaire makes an ideal complement to site design. Rugged construction and full range of optical packages provide facade and security lighting for light restricted zones surrounding schools, office complexes, apartments, and recreational facilities. U.L. and cUL listed for wet locations in down mount applications and damp locations in up mounted applications.MORE DESCRIPTION
