PRODUCT DETAILS
-
2-INCH-SSLead time
Cost
—

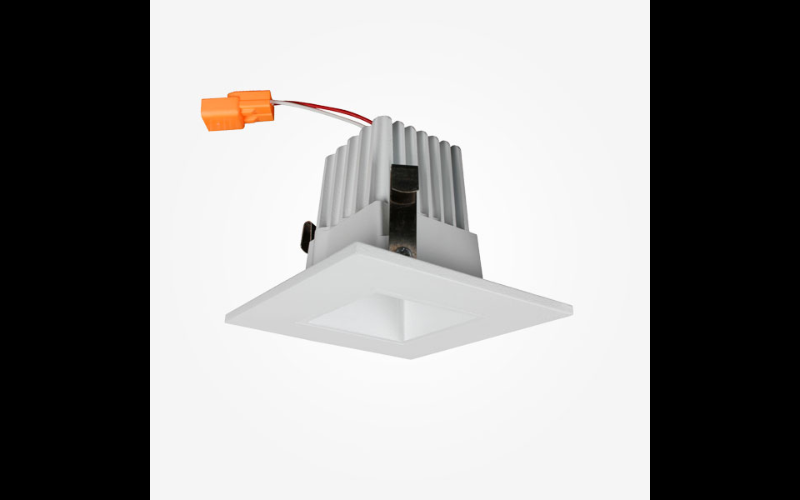

Luminoso Led2-INCH-SS. 2 INCH SQUARE LED MODULE-TRIM.
SPECIFICATIONS- DimensionsW: 3 1/8"L: 3 1/8"
- Light SourceLED
- CCT/Color2700K3000K4000K5000K
- CRI90
- Watt(Approx)9 W
- Lumens(Approx)581 Lm628 Lm687 Lm656 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- Other
- DimmingDim to 3-10%TRIAC/Forward/Leading0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULEnergy Star*
- EnvironmentWet
- Mounting TypeCeiling Recessed
- HousingNew Construction
- Housing Depth2 5/8 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The Luminoso LED trims are designed for use with Luminoso 2″ Dedicated housings. The 2″ LED trim is the perfect solution low to medium height ceilings in residential and light commercial applications. Its small aperture makes it ideal for strategic placement where space is limited and energy savings is important.MORE DESCRIPTION
