PRODUCT DETAILS
-
URS-ECOLead time
Cost
—
Linmore LedURS-ECO. URS Economy DIRECT LINEAR APPLICATION AND RETROFIT SYSTEM.
SPECIFICATIONS- DimensionsW: 1.65"L: 22"44"H: .91"
- Light SourceLED
- CCT/Color3500K4000K5000K
- CRI80
- Watt(Approx)12 W15 W18 W22 W26 W30 W36 W44 W60 W72 W88 W
- Lumens(Approx)1824 Lm2235 Lm2898 Lm3476 Lm4056 Lm4620 Lm5505 Lm6662 Lm9483 Lm11066 Lm13464 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- Other
- DimmingDim to 3-10%0-10V
- Controls/NetworkBluetoothIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance200000 h
- CertificatesUL/CULDLC*RoHS
- EnvironmentDamp
- Mounting TypeRetrofit
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details

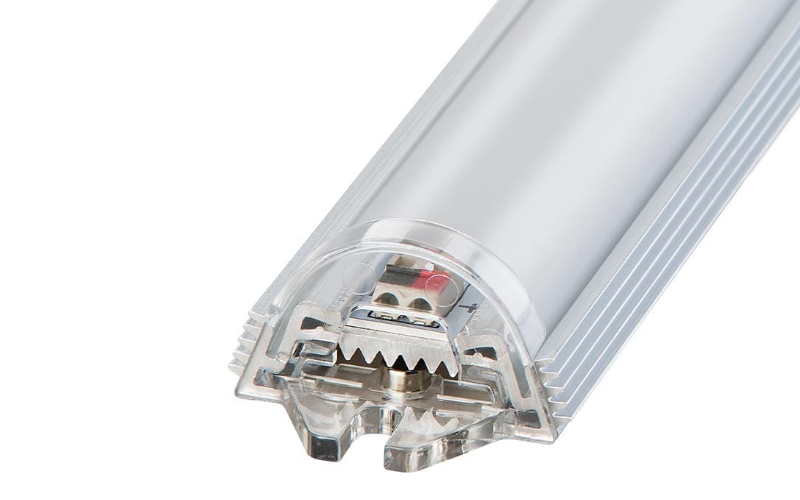

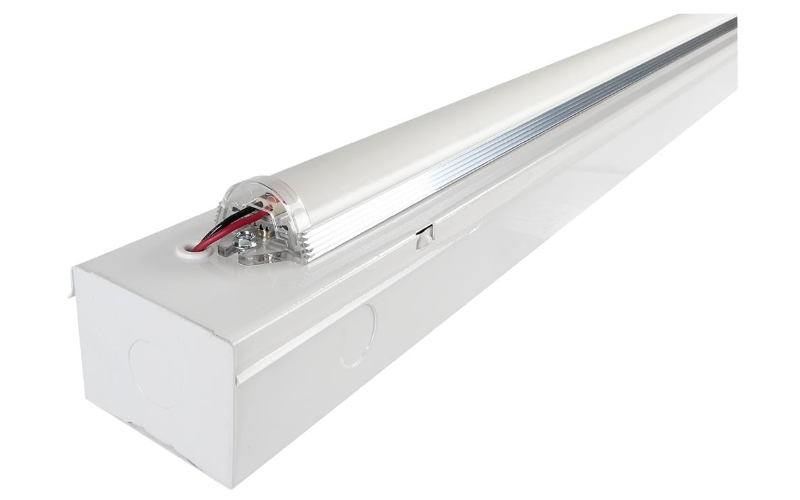

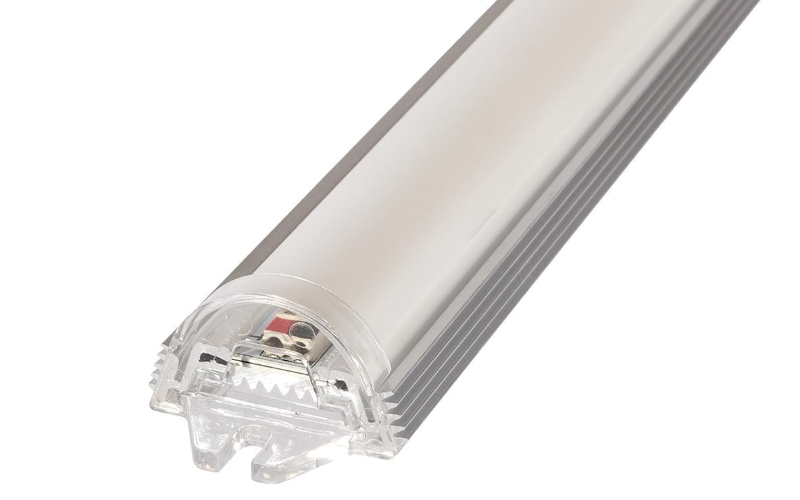

CONFIGURE PRODUCTPRODUCT DESCRIPTION—Linmore LED Labs Universal Retrofit System Economy (URS-ECO) is the ultimate retrofit system for a variety of linear fluorescent light fixtures. Each URS-ECO is comprised of a patented aluminum extrusion, a high efficacy set of LEDs, and an external dimmable driver.
The URS-ECO is offered in two nominal lengths, 2′ & 4′, to retrofit the most popular installed housing. When the objective is to extend the useful life of installed fixtures while upgrading to LED with a robust, complete retrofit system with components that exceed those found in LED tubes, Linmore’s URS-ECO is the clear choice.
Applications: Automotive Lighting, Commercial Lighting, Food Processing Lighting, Industrial Lighting, Office Lighting, Parking Garage Lighting, Warehouse Lighting.MORE DESCRIPTION
