PRODUCT DETAILS
-
PRVLead time
Cost
—

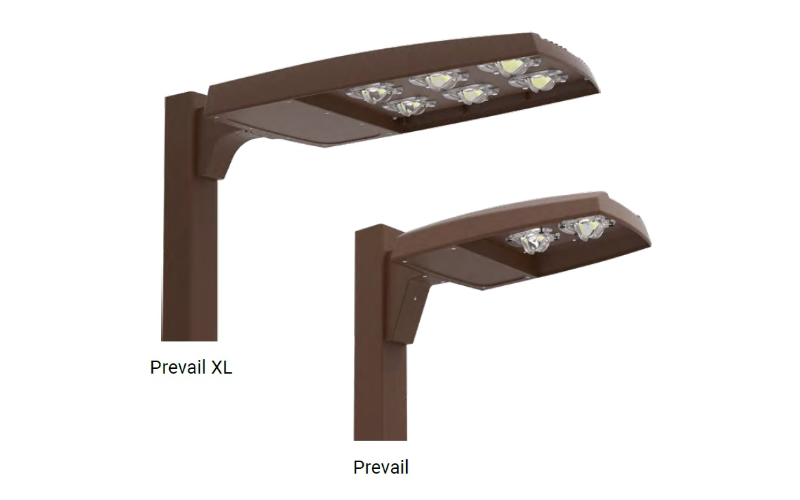

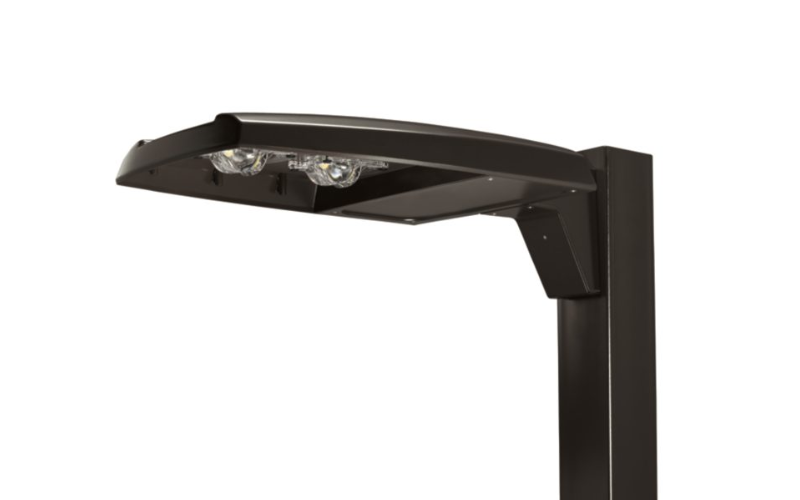

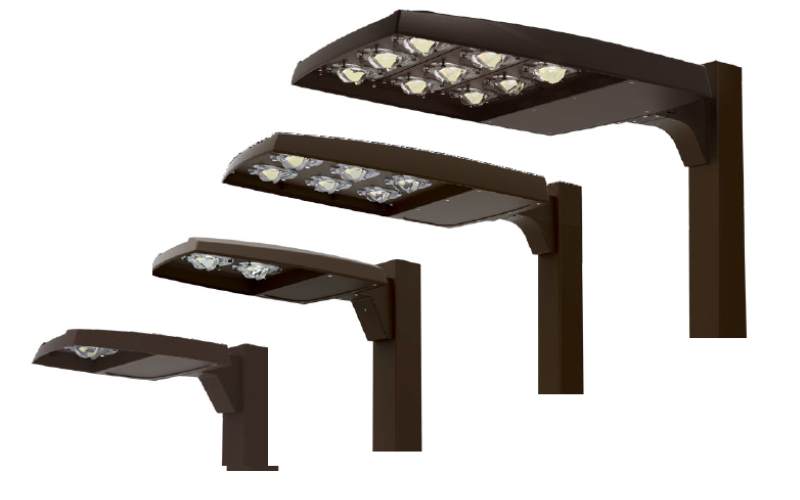

Lumark (Cooper Lighting Solutions)PRV/PRV-XL. PREVAIL Area/Site Luminaire LED.
SPECIFICATIONS- DimensionsW: 13 15/16"17 7/8"22 7/8"L: 20 7/8"26 13/16"39 5/8"41 3/8"H: 2 3/4"3 11/16"7 1/16"
- Light SourceLED
- CCT/Color2700K3000K4000K5000K
- CRI70 85
- Watt(Approx)35 W49 W73 W52 W94 W96 W131 W153 W176 W217 W264 W285 W346 W419 W485 W586 W
- Lumens(Approx)5067 Lm7128 Lm7576 Lm10126 Lm12226 Lm14045 Lm18264 Lm21360 Lm28129 Lm33450 Lm39097 Lm44287 Lm52349 Lm53531 Lm63201 Lm72773 Lm84335 Lm
- OpticsDirectType IIType IIIType IVType V
- AdjustableAdjustable
- Other
- DimmingDim to 3-10%0-10V
- Controls/NetworkBluetoothWaveLinxIntegral Sensor
- Power/VoltageIntegralUNV 120-277V277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance204000 h
- CertificatesUL/CULMade in USADLC*RoHSBAA
- EnvironmentIP66
- Mounting TypePole/Mast ArmWall SurfaceWall Arm/CantileverSlip FitterTenon Adapter
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The Prevail LED area and site luminaire combines optical performance, energy efficiency and long-term reliability in an advanced, patent pending modern design. Utilizing the latest LED technology, the Prevail luminaire delivers unparalleled uniformity resulting in greater pole spacing. A versatile mount standard arm facilitates ease of installation for both retrofit and new installations. With energy savings greater than 85%, the Prevail fixture replaces 70W-1,500W metal halide fixtures in general area lighting applications such as parking lots, walkways, roadways and building areas.MORE DESCRIPTION
