PRODUCT DETAILS
-
PNL2X4-PRMLead time
Cost
—

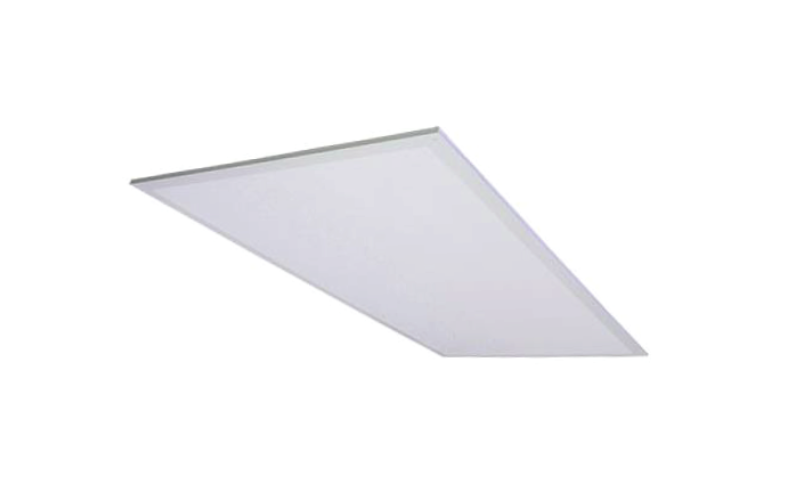

LEDaluxPNL2X4. 2X4 Premium Back-Lit LED Panel.
SPECIFICATIONS- DimensionsW: 2 FtL: 4 Ft
- Light SourceLED
- CCT/Color3500K4000K5000K
- CRI80
- Watt(Approx)40 W
- Lumens(Approx)5385 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- Other
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance144000 h
- CertificatesUL/CULDLC*RoHS
- EnvironmentDamp
- Mounting TypeCeiling Recessed
- HousingIC
- Housing Depth2 1/4 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The premium-performance, ultra-thin, Back-lit LED panels offer industry-leading lumens per watt (LPW). It is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capabilityMORE DESCRIPTION
