PRODUCT DETAILS
-
LDS-LFLLead time
Cost
—

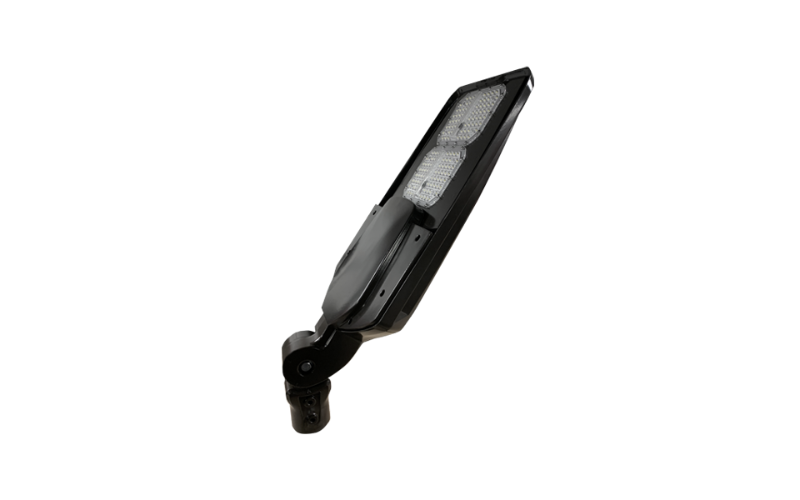

LUMECONLDS-LFL. Flood Light Detroit Series LED Large .
SPECIFICATIONS- DimensionsW: 15.56"L: 32.19"H: 10.74"
- Light SourceLED
- CCT/Color2400K or less2700K3000K4000K5000K
- CRI90
- Watt(Approx)165 W200 W242 W276 W293 W331 W
- Lumens(Approx)26260 Lm27060 Lm31056 Lm31863 Lm36705 Lm37659 Lm40462 Lm41513 Lm42308 Lm43407 Lm47180 Lm47099 Lm
- OpticsDirectNarrowGeneral Diffused
- AdjustableAdjustable
- Other
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesETLMade in USADLC*
- EnvironmentIP66
- Mounting TypeBrackets
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—- Bold Detroit inspired design
- Die-cast aluminum in Michigan, US
- PPG Envirocron™ Protection Edge Powder Coated
- Custom made Ledil® Optics for ultimate uniformity
- 2200-5000K Kelvin Temperature LEDs available
- American Made LED Light Engine
- 3,000 HR salt spray tested as defined in ASTM Standard B117
- Vibration rated – per ANSI C136.31 100,000 cycles 3G vibration
- Vandal Resistant / Impact Rated lensing assembly
- Ten-year performance warranty
- Protected: 40kV Surge Suppression standard
- Made-in-the-USA
