PRODUCT DETAILS
-
PN3LED12-E3MRLead time
Cost
—

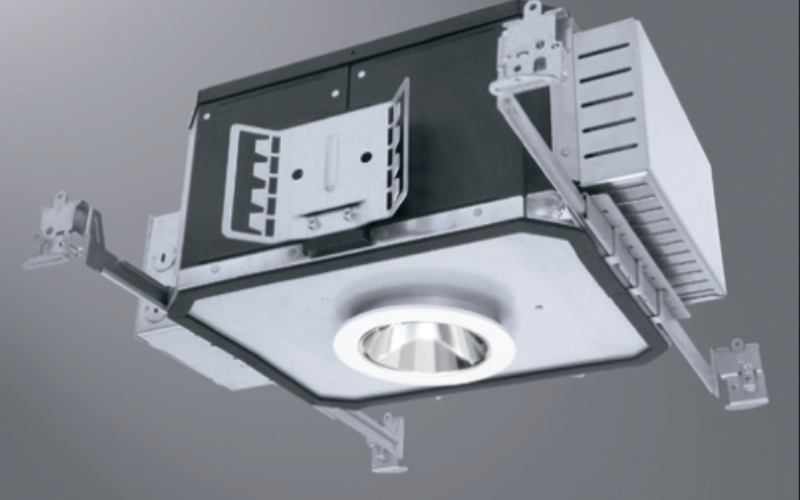

IRIS (Cooper Lighting Solutions)PN3LED12 E3MR. LED Downlight 3.5'' Aperture 1,200 Lumen Series.
SPECIFICATIONS- DimensionsW: 5 1/8"L: 5 1/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)18.5 W
- Lumens(Approx)1152 Lm
- OpticsDirectNarrowMediumFloodGeneral Diffused
- AdjustableAdjustable
- Other
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron EcoSystem ADMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance40000 h
- CertificatesUL/CULT24*Energy Star*
- EnvironmentDamp
- Mounting TypeCeiling Recessed
- HousingNew Construction
- Housing Depth6 7/16 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—3" aperture specification grade open downlight reflector. Suitable for use with 75W maximum low voltage tungsten-halogen or LED MR16 lamps, use also with integral LED light engine and reflectors. The 50° cutoff to lamp and lamp image provides a smooth, glare free distribution of light. Distribution based on lamp beam angle utilized. Use for task and general area illumination.
