PRODUCT DETAILS
-
RSQ4Lead time
Cost
—

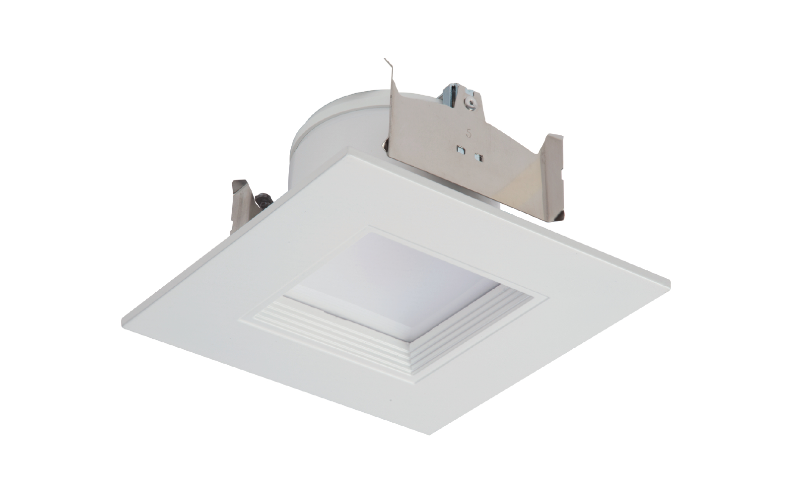

HALO (Cooper Lighting Solutions)RSQ4. 4-Inch Square All-Purpose LED Retrofit Module.
SPECIFICATIONS- DimensionsW: 5.12"L: 5.12"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KField Select CCT
- CRI90
- Watt(Approx)9.8 W
- Lumens(Approx)900 Lm
- OpticsDirectWide Flood
- Adjustable
- Other
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesUL/CULT24*Energy Star*RoHS
- EnvironmentWet
- Mounting TypeCeiling Recessed
- HousingNew ConstructionAir TightIC Air TightRemodel Air TightRemodel IC Air Tight
- Housing Depth2.6 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The RSQ4 is an integrated LED module / trim with a square shallow lens suitable for new construction, remodel and retrofit installation. Certified for use with Halo and compatible 4” housings and can be used with housings in direct contact with insulation. Integral gasket provides airtight compliance in non-airtight housings, provides code compliance and additional energy savings. Use for general area lighting in low to medium height ceilings where energy savings and long life are desired.MORE DESCRIPTION
