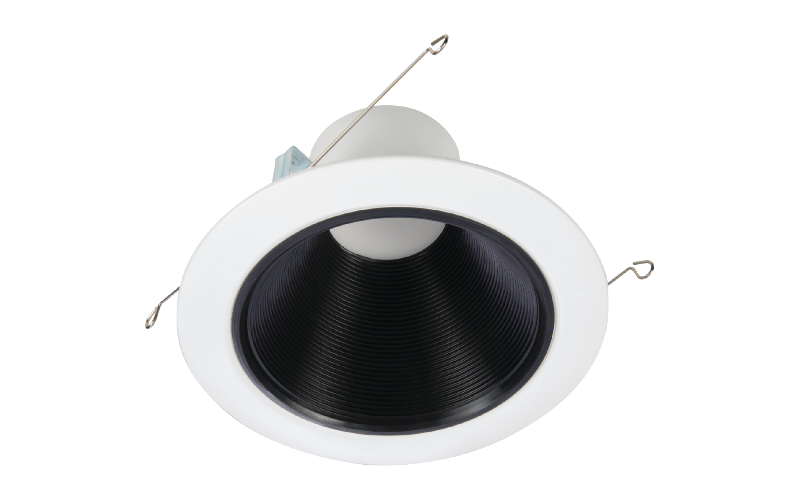

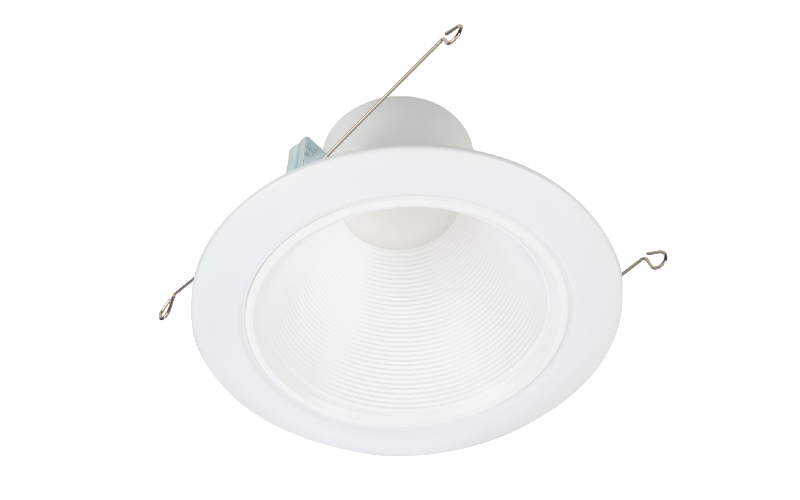

HALO (Cooper Lighting Solutions)RLD6. 600 Lumen Series 6-Inch All-Purpose LED Retrofit Module.
SPECIFICATIONS- DimensionsW: 7.24"L: 7.24"
- Light SourceLED
- CCT/Color3000K
- CRI90
- Watt(Approx)8.5 W
- Lumens(Approx)668 Lm
- OpticsDirectWide Flood
- Adjustable
- Other
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULT24*Energy Star*RoHS
- EnvironmentWet
- Mounting TypeCeiling Recessed
- HousingNew ConstructionICChicago PlenumRemodelRemodel ICAir TightIC Air TightRemodel IC Air TightRetrofit
- Housing Depth4.7 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The Halo RL6 Deep Baffle is a complete LED Bafle-Trim Module for 6-Inch aperture recessed downlights suitable for new construction, remodel and retrofit installation. The regressed lens provides uniform illumination and 50 degree optical cutoff. The Deep Baffle comes standard with both white and black Coilex baffle insters and is wet location. Precision construction makes any housing AIR-TITE for added savings and code compliance.MORE DESCRIPTION
