PRODUCT DETAILS
-
LT56Lead time
Cost
—

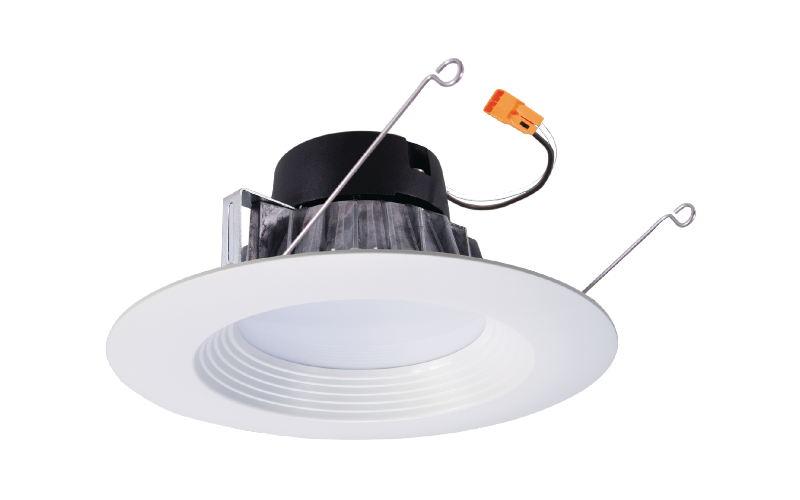

HALO (Cooper Lighting Solutions)LT560WH129. High Lumen Series 5/6-Inch LED Recessed Retrofit Module-Trim.
SPECIFICATIONS- DimensionsW: 7.19"L: 7.19"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)12 W
- Lumens(Approx)1100 Lm1140 Lm1180 Lm1170 Lm
- OpticsDirectWide Flood
- Adjustable
- Other
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULT24*Energy Star*RoHS
- EnvironmentShowerWet
- Mounting TypeCeiling Recessed
- HousingNew ConstructionRemodelAir TightRemodel Air Tight
- Housing Depth3.5 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—Ideal as an energy-saving retrofit solution, but also suitable for new construction and remodeling projects, the LT56 High Lumen is an LED baffle trim module for use in 5" and 6" aperture recessed downlights. Downlight is UL certified for use with HALO and other compatible housings. Precision construction makes any housing airtight for added HVAC savings and code compliance. A wide distribution makes the LT56 ideal for general and task lighting.MORE DESCRIPTION
