PRODUCT DETAILS
-
HL612ICATLead time
Cost
—

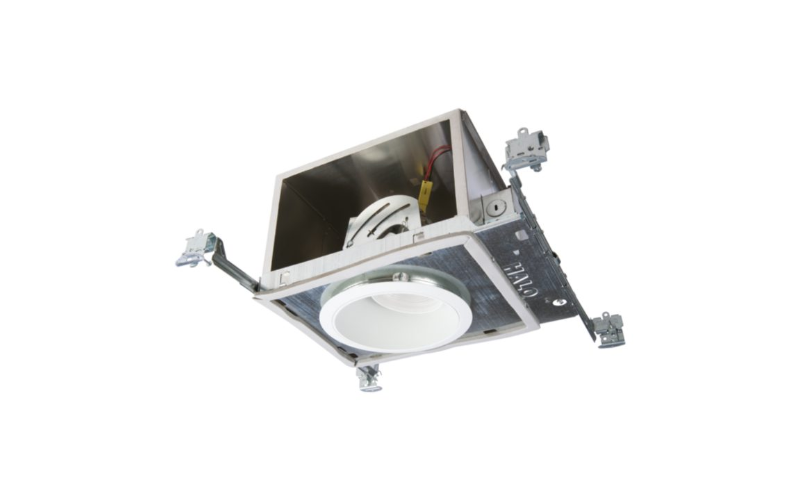

HALO (Cooper Lighting Solutions)HL612ICAT. ALLSLOPE 6'' Insulated Ceiling Air-Tite Recessed Housing System.
SPECIFICATIONS- DimensionsW: 6 1/2"L: 6 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)19.1 W
- Lumens(Approx)1443 Lm1527 Lm1616 Lm1672 Lm
- OpticsDirectFloodWide Flood
- AdjustableAdjustable
- Other
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*Energy Star*RoHS
- EnvironmentDamp
- Mounting TypeCeiling Recessed
- HousingAir Tight
- Housing Depth7 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The Halo® HL6 LED ALLSLOPE recessed downlight system accommodates slope ceilings with pitch aiming for 2/12 (10 degrees) to 12/12 (45 degrees) pitches. The three piece system consists of a choice of a 6-inch aperture housing, available in 1200 lumens or 1800 lumens; an LED light engine with three interchangeable optics; and a trim selection from a full line of compatible trims including reflectors, baffles and lens choices. The versatile HL6 ALLSLOPE is suitable for use in residential and commercial applications, and may be dimmed with either 120V phase-cut or 0-10V controls.MORE DESCRIPTION
