PRODUCT DETAILS
-
BLD4-SCCTLead time
Cost
—

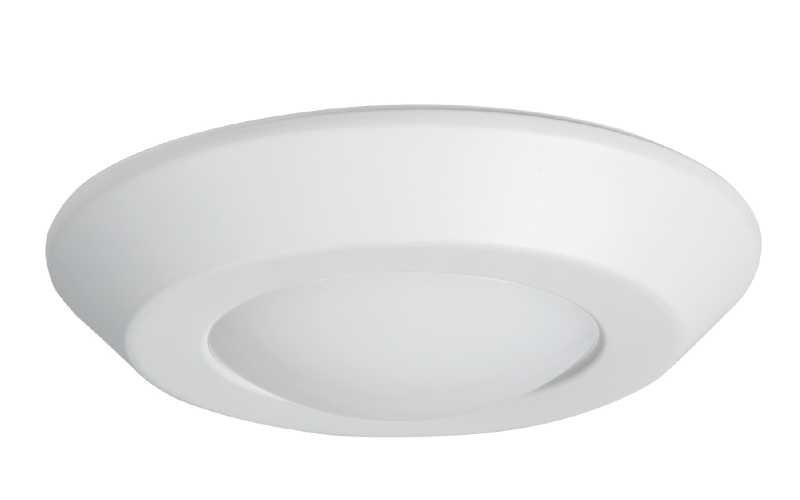

HALO (Cooper Lighting Solutions)BLD4. 4'' Backlit LED Downlight - SeleCCTable.
SPECIFICATIONS- DimensionsW: 6 3/16"L: 6 3/16"H: 1 1/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KField Select CCT
- CRI90
- Watt(Approx)10.3 W
- Lumens(Approx)802 Lm
- OpticsDirectWide Flood
- Adjustable
- Other
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*Energy Star*RoHS
- EnvironmentWet
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The HALO Backlit LED Downlight (BLD) is a low-profile, high-performance surface-mount downlight with a sleek design and curved lens. Available in 3000K or field seleCCTable 5 color temperature options. The BLD is designed for installation in most 3-1/2” and 4” square, octagon, or round junction boxes and includes the supply wire adapter with an orange LED quick wiring connector. For added installation flexibility, the BLD4 can also be mounted to a 4" aperture IC and Non-IC recessed housings with its included friction blade brackets.MORE DESCRIPTION
