PRODUCT DETAILS
-
HL-GEN4-CCLead time
Cost
—

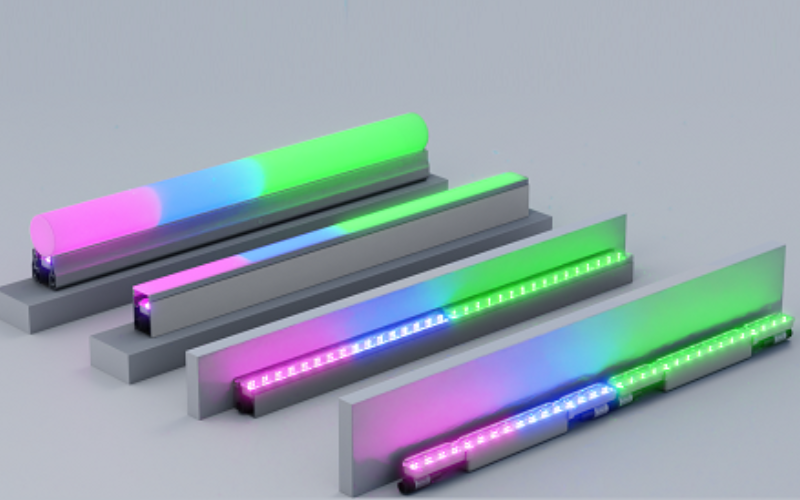

GVA LightingHL-G4. HIGHLIGHTER series | Generation 4 | Modular LED Lighting System COLOR CHANGING.
SPECIFICATIONS- DimensionsW: 1.9"2.0"L: 11.69"23.50"35.31"47.13"Run length (Ft)H: 2.4"3.4"
- Light SourceLED
- CCT/ColorRGBW
- CRI
- Watt(Approx)2 W/Ft2.5 W/Ft3 W/Ft5 W/Ft
- Lumens(Approx)346 Lm/Ft
- OpticsDirectGrazingWide Flood
- AdjustableAdjustable
- Other
- DimmingNon-DimDALIDMX
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance115000 h
- CertificatesUL/CULRoHS
- EnvironmentIP66
- Mounting TypeSurfaceBrackets
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—- Up to 2,000 modules (600 meters or 1,968 ft) long single lighting circuit enabled by GVA’s INFINITY® Technology
- Up to 100 meters (328 ft) long leader or jumper cables
- Power and Data through-wiring for end-to-end connection via sealed push lock connectors
- Down to 150mm (5.90”) pixel resolution
- Very high communication speed of 6.25 Mbps
- Up to 200 frames per second refresh rate based on new GVA’s Color-Stream® communication protocol
- 12-bit dimming resolution @ 40kHz dimming frequency
- Multiple luminaire’s power calibrations (in the field)
- Built-In GVA’s Color-Amp® Technology with accurate color control
- LED pitch is maintained between luminaires to eliminate dark spots
- Operating Temperatures: – 40°C (- 40°F) to + 50°C (122°F)
- IP66
