PRODUCT DETAILS
-
KAP-80-RFLead time
Cost
—

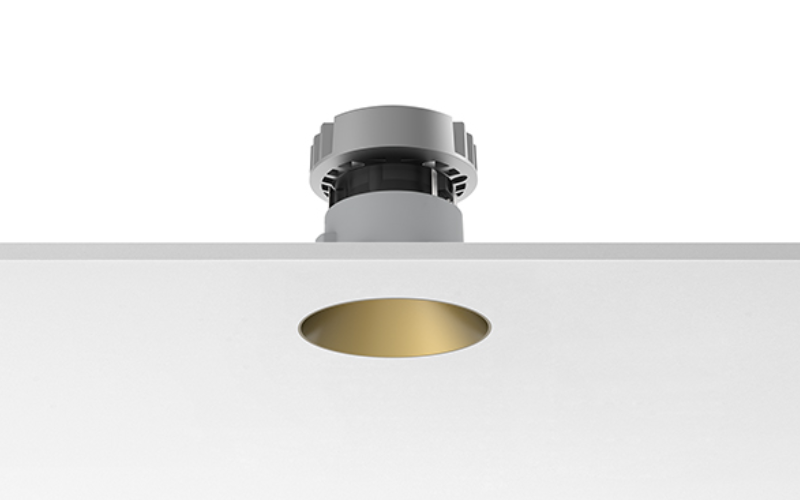

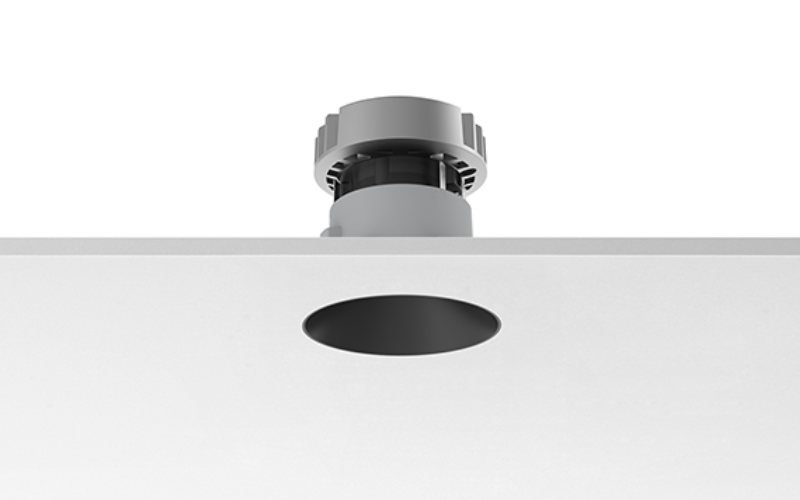

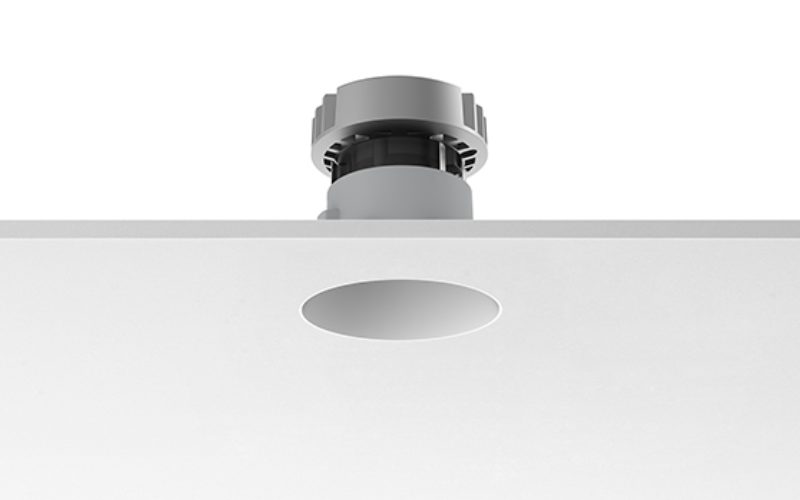

Flos ArchitecturalKap 80 Round Fixed.
SPECIFICATIONS- DimensionsW: 2.91"L: 2.91"
- Light SourceLED
- CCT/Color2700K3000K
- CRI90
- Watt(Approx)9.2 W
- Lumens(Approx)974 Lm935 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- Other
- DimmingDim to 3-10%Dim to 1%ELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CUL
- Environment
- Mounting TypeCeiling Recessed
- HousingNew Construction
- Housing Depth3.17 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—LED trimless downlight for new construction. Recessed mud-in mounting into drywall or plasterboard. Die-cast aluminum body with painted lacquer finish. The Kap 80 version has an aluminum injected body with a liquid paint, dust and/or metallic copper finish with a plastic diffuser included. A pre-installation frame is required. This LED downlight uses cutting-edge technology which creates a higher-powered downlight due to cooler operating electronics yielding 20% higher luminous flux than earlier models. The product is JA8-2019 CA Title 24 listed and CCEA Chicago Plenum.MORE DESCRIPTION
