PRODUCT DETAILS
-
24IDLead time
Cost
—

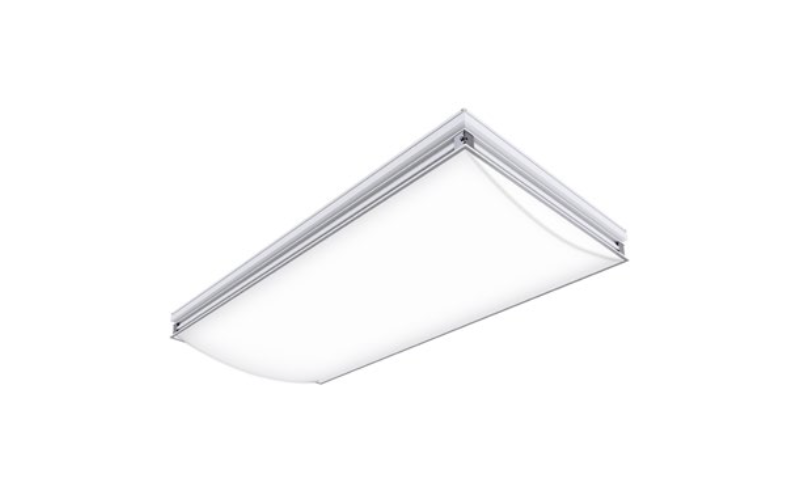

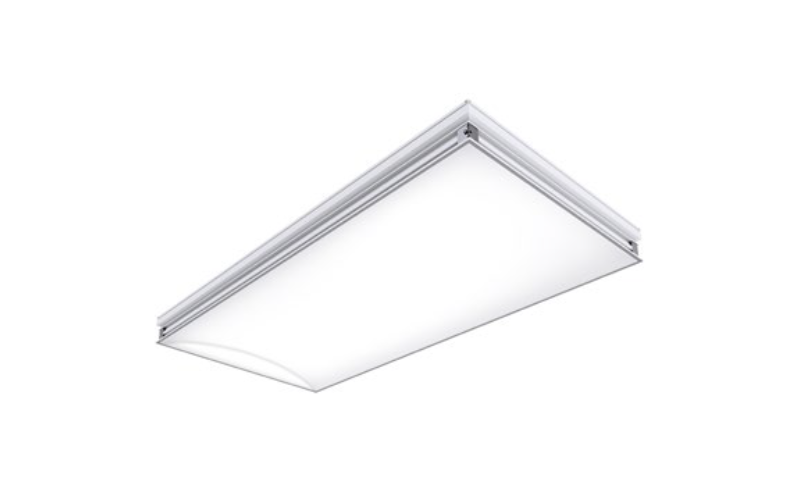

Corelite (Cooper Lighting Solutions)24ID. 2'x4' LED Specification InDepth Series.
SPECIFICATIONS- DimensionsW: 2 FtL: 4 FtH: 15/16"1 15/16"3"
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI80
- Watt(Approx)16.9 W21.4 W25.8 W30.4 W35.2 W40 W44.1 W50.2 W54.5 W65.6 W77 W87.3 W
- Lumens(Approx)1913 Lm2416 Lm2919 Lm3424 Lm3889 Lm4402 Lm4799 Lm5377 Lm5772 Lm6761 Lm7764 Lm8680 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- Other
- DimmingDim to 3-10%Dim to 1%Dim to <1%Step Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkWaveLinxIntegral Sensor
- Power/VoltageIntegralRemoteUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance131000 h
- CertificatesUL/CULDLC*T24*RoHS
- EnvironmentAntimicrobial FinishDampIP66Healthcare General
- Mounting TypeCeiling SurfaceCeiling Recessed
- HousingICChicago Plenum
- Housing Depth4 7/16 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The InDepth LED Specification series is designed to create architectural ceiling topography with regressed and drop lens options. InDepth provides design flexibility and versatility by providing seven lens options (two regressed cube, one regressed curve, three drop cube, and one drop curve). The regressed lens options provide optical cut off with reduced glare. Wireless control options are available.MORE DESCRIPTION
