PRODUCT DETAILS
-
CSL390Lead time
Cost
—

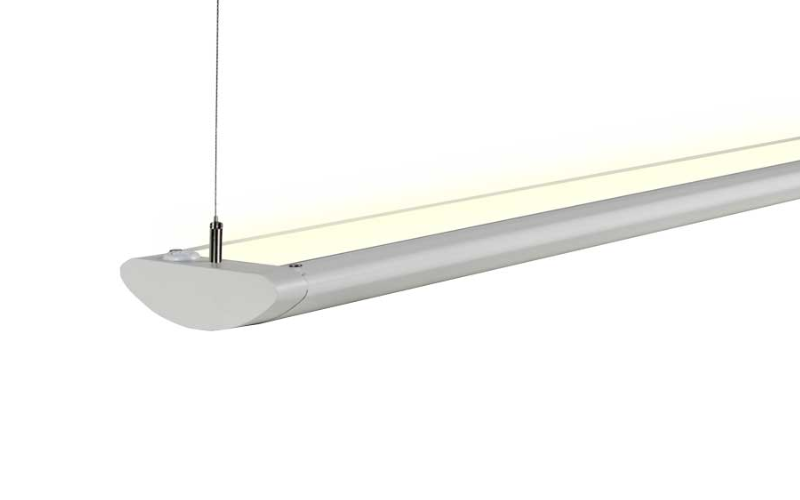

Core LightingCSL390. Indirect Suspended Linear LED luminaire.
SPECIFICATIONS- DimensionsW: 3.94"L: 4 Ft6 Ft8 FtRun length (Ft)H: 1.2"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K5000KField Select CCT
- CRI90
- Watt(Approx)6 W7 W8 W
- Lumens(Approx)500 Lm700 Lm1000 Lm
- OpticsIndirectGeneral Diffused
- Adjustable
- Other
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CUL
- EnvironmentIP65
- Mounting TypePendant
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The CSL390 is a suspended linear LED fixture designed with a simple yet elegant structure combined with the indirect lighting concept which provides a uniform light output and an excellent anti-glare effect to your space. Its advanced thermal management technology guarantees continuous high lumen output and constant CCT at up to 1000 lm per linear ft.MORE DESCRIPTION
