PRODUCT DETAILS
-
SOL-RPALead time
Cost
—

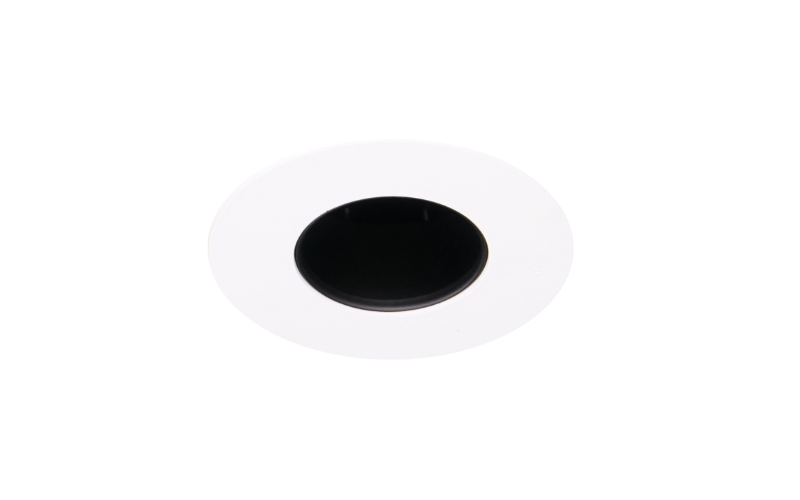

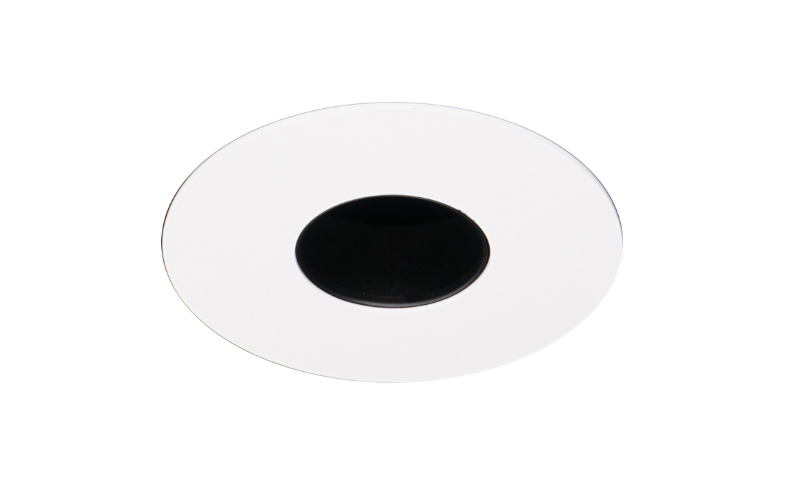

AmerluxSOL-RPA. Solace 3'' Shallow Round Adjustables Pinhole.
SPECIFICATIONS- DimensionsW: 3"3 7/8"L: 3 7/8"3"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI83 90
- Watt(Approx)8 W12 W17 W
- Lumens(Approx)844 Lm1243 Lm1593 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- Other
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Premier Eco (PEQ0)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSA
- EnvironmentDamp
- Mounting TypeCeiling Recessed
- HousingNew ConstructionChicago PlenumIC Air Tight
- Housing Depth3 9/16 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—Solace 3” Downlights are the complete downlight family for any ceiling surface and low plenum ceiling. Round or Square apertures, available as downlight, adjustable or wallwash. Optional Solite lensing provides whisper quiet aesthetics. The trim options available as trimmed, trimless or millwork. The pinhole and shower pinhole trim makes this a complete downlight to design the entire space with the same look.MORE DESCRIPTION
