PRODUCT DETAILS
-
LPX2PLead time
Cost
—

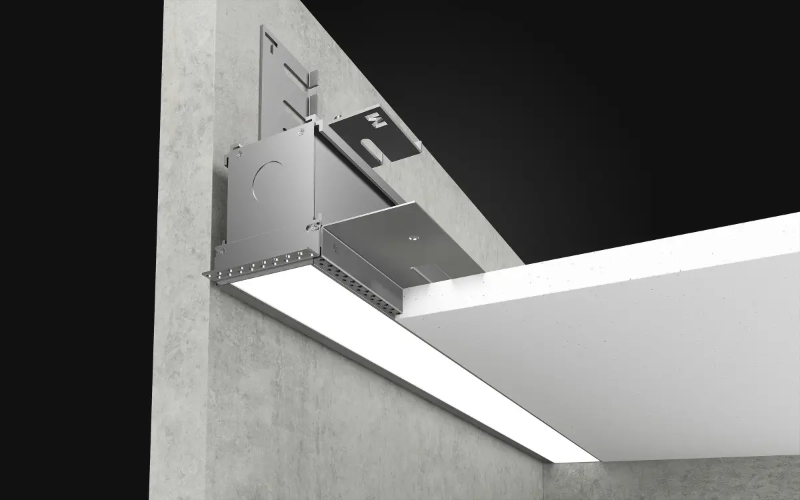

ALWLPX2P. LIGHTPLANE+ 2P RECESSED PERIMETER.
SPECIFICATIONS- DimensionsW: 3 1/2"3 3/8"2 7/8"2"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable WhiteRGBRGBW
- CRI80 90
- Watt(Approx)2.7 W/Ft3.8 W/Ft4.7 W/Ft5.9 W/Ft6.7 W/Ft8 W/Ft9.5 W/Ft12.2 W/Ftcustom
- Lumens(Approx)209 Lm/Ft425 Lm/Ft602 Lm/Ft918 Lm/Ft1224 Lm/Ft1440 Lm/Ft1804 Lm/Ftcustom
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- Other
- DimmingDim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED SOLO 0-10VDMX
- Controls/NetworkLutron®EthernetENCELIUM®Wattstopper® DLMNX WirelessCasambiWaveLinxIntegral Sensor
- Power/VoltageIntegralRemotePoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULT24*Declare
- EnvironmentDamp
- Mounting TypeCeiling Recessed
- HousingNew ConstructionChicago Plenum
- Housing Depth3 1/4 ''
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—LightPlane+ is the ultimate linear lighting family offering 500+ configurable models featuring a complete range of mounting integrations, performance and optic options.
Specify continuous lengths, shapes, and complex patterns utilising four distinct apertures (1", 2", 3", and 4"). LightPlane+ can fill an entire linear fixture schedule, simplifying the specification process, order management, and project execution.
LightPlane+ is engineered for a streamlined installation process, featuring contractor-friendly features from continuous ControlRoll lensing, single-tool installation, and field adjustable sliding mount points. LightPlane+ brings sustainability within reach for all projects featuring a Declare Label and Red List Approved options.MORE DESCRIPTION
