PRODUCT DETAILS
-
SCWPLead time
Cost
—

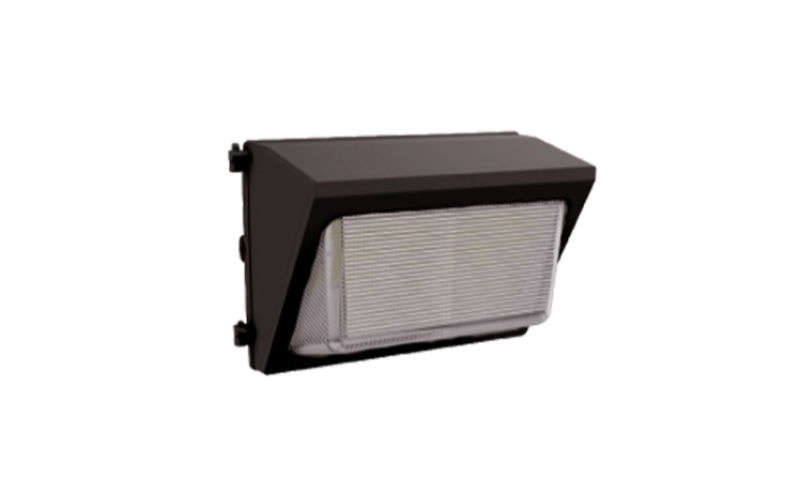

ABOVE ALLSCWP. PUS Selectable Classic LED Wall Pack.
SPECIFICATIONS- DimensionsW: 14.21"L: 7.31"H: 9.27"
- Light SourceLED
- CCT/Color3500K4000K5000KField Select CCT
- CRI70
- Watt(Approx)60 W80 W100 W120 Wswitchable
- Lumens(Approx)7800 Lm10400 Lm13000 Lm15600 Lmswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- Other
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDLC*RoHS
- EnvironmentWet
- Mounting TypeWall Surface
- Housing
- Housing Depth
Description:DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration and design parameters shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
! Marks unavailable product configuration, refer to manufacturer’s documentation for details
CONFIGURE PRODUCTPRODUCT DESCRIPTION—The PUS Selectable Classic LED Wall Pack offers a traditional appearance and is powered by advanced LEDs, featured by wattage and CCT selectable. The Selectable Classic LED Wall Pack is powerful yet energy efficient, with lumen output from 7800lm to 15,600lm, capable of replacing a 400W metal halide luminaire easily. The Selectable Classic LED Wall Pack not only is suitable for entryway / pathway lighting with 8’–15’ mounting heights but also suitable for area / perimeter lighting up to 25’ mounting heights.MORE DESCRIPTION
